Lab 5

Deadline: Friday, March 5 at 11:00:00 PM Pacific Time

Objectives

• TSWBAT practice designing and debugging basic digital logic circuits in Logisim
• TSW gain more experience designing and debugging circuits with both combinational logic and stateful elements
• TSW gain experience designing FSMs and implementing them as digital logic

Setup

Pull the Lab 5 files from the lab starter repository with

git pull starter master

All the work in this lab will be done from the digital logic simulation program Logisim Evolution.

Some warnings before you start of importance:

• Logisim is a GUI program, so it can’t easily be used in a headless environment (WSL, Hive SSH, other SSH server, etc.). We recommend running it in a local environment with a GUI (Windows users, remember that WSL is headless, but Git Bash run outside of WSL)
• Please use the version of Logisim that we distribute, since it is different from other versions on the internet (bugfixes and course-specific stuff)
• Don’t move the staff-provided input/output pins; your circuit can’t be tested properly if the pins move. If your circuit doesn’t pass the tests and you think it is correct, check that your circuit fits in the corresponding harness in tests/ex#_test.circ
• Logisim doesn’t auto-save your work. Remember to save (and commit) frequently as you work!

Exercise 0: Introduction

First, make sure you’re in an environment with a GUI, Java 9+, and Python 3.6+. If your local system is macOS or Linux you’re probably all set. If you’re on Windows, we recommend Git Bash, which runs on Windows with GUI support (WSL Bash/Ubuntu Bash run in WSL which typically doesn’t have a GUI). Running Logisim over SSH (e.g. Hive) won’t let you edit circuits (unless you do X11 forwarding, which is rather annoying).

As with Venus, you can run Logisim from inside the lab05 folder with ../tools/logisim. If you’re in your lab repo root folder you can use ./tools/logisim, and if you’re in another folder you can use the corresponding relative path. After a short startup sequence, a slightly ancient-looking window should appear. If not, check for errors in your terminal.

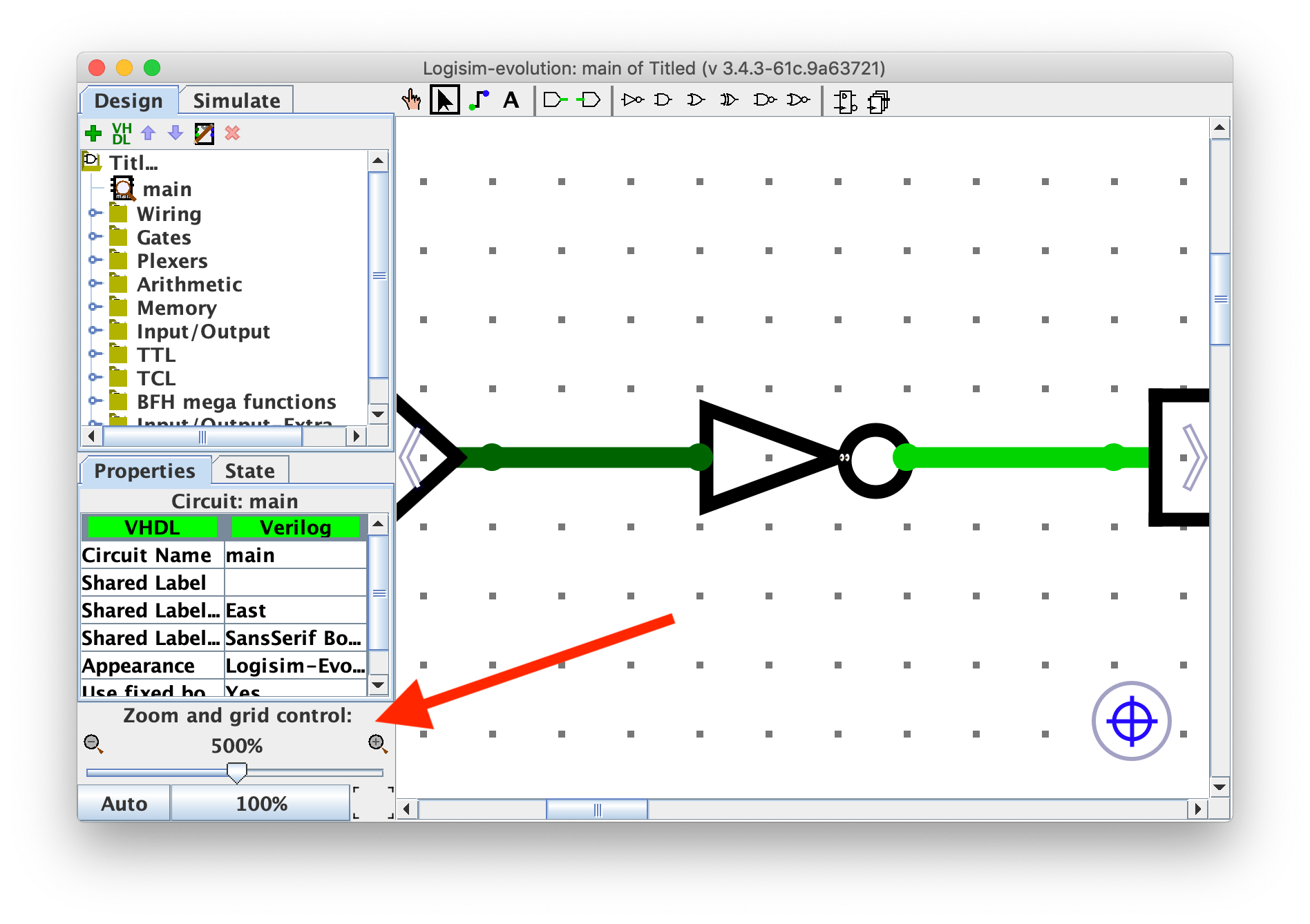

We’ll begin by creating a very simple circuit just to get the feel for placing gates and wires. Before you start, take note of a useful feature: the zoom function! It’s in the bottom left corner, and will make your life much easier for the next few weeks. Zoom Zoom Zoom.

1. Start by clicking the AND gate button. This will cause the shadow of an AND gate to follow your cursor around. Click once within the main schematic window to place an AND gate.

2. Click the Input Pin button. Now, place two input pins somewhere to the left of your AND gate.

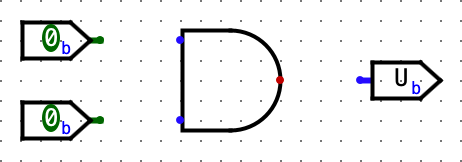

3. Click the Output Pin button. Then place an output pin somewhere to the right of your AND gate. Your schematic should look something like this at this point:



4. Click the Select tool button. Click and drag to connect the input pins to the left side of the AND gate. This will take several steps, as you can only draw vertical and horizontal wires. Just draw a wire horizontally, release the mouse button, then click and drag starting from the end of the wire to continue vertically. You can attach the wire to any pin on the AND gate on the left side. Repeat the same procedure to connect the output of the AND Gate (right side) to the output pin. After completing these steps your schematic should look roughly like this:

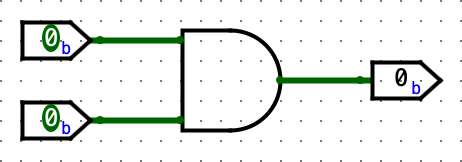

5. Finally, click the Poke tool and try clicking on the input pins in your schematic. Observe what happens. Does this match with what you think an AND Gate should do? Now, try poking a wire directly. The current value on that wire should pop up; this will be very useful later when you build more complex circuits.

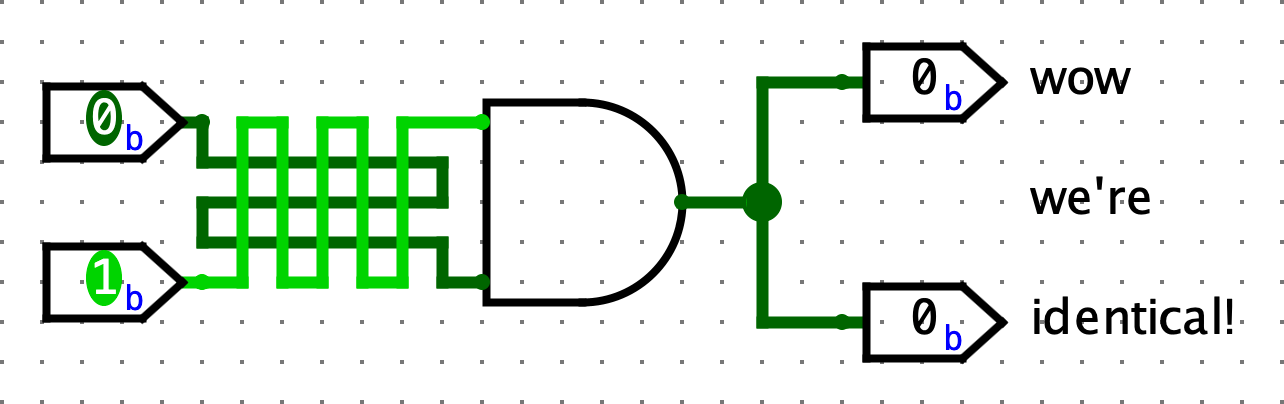

6. Now, delete the wires, and try wiring each input pin to the other pin on the AND gate, in such a way that the wires cross over. An extreme example:



   If you’re creating a wire and drag it over another wire without stopping, the wires won’t connect. If you’re creating a wire and stop dragging while on top of another wire, a junction (big circle) will be created, and the wires will connect. Make sure to pay attention to junctions when you’re designing your circuits!

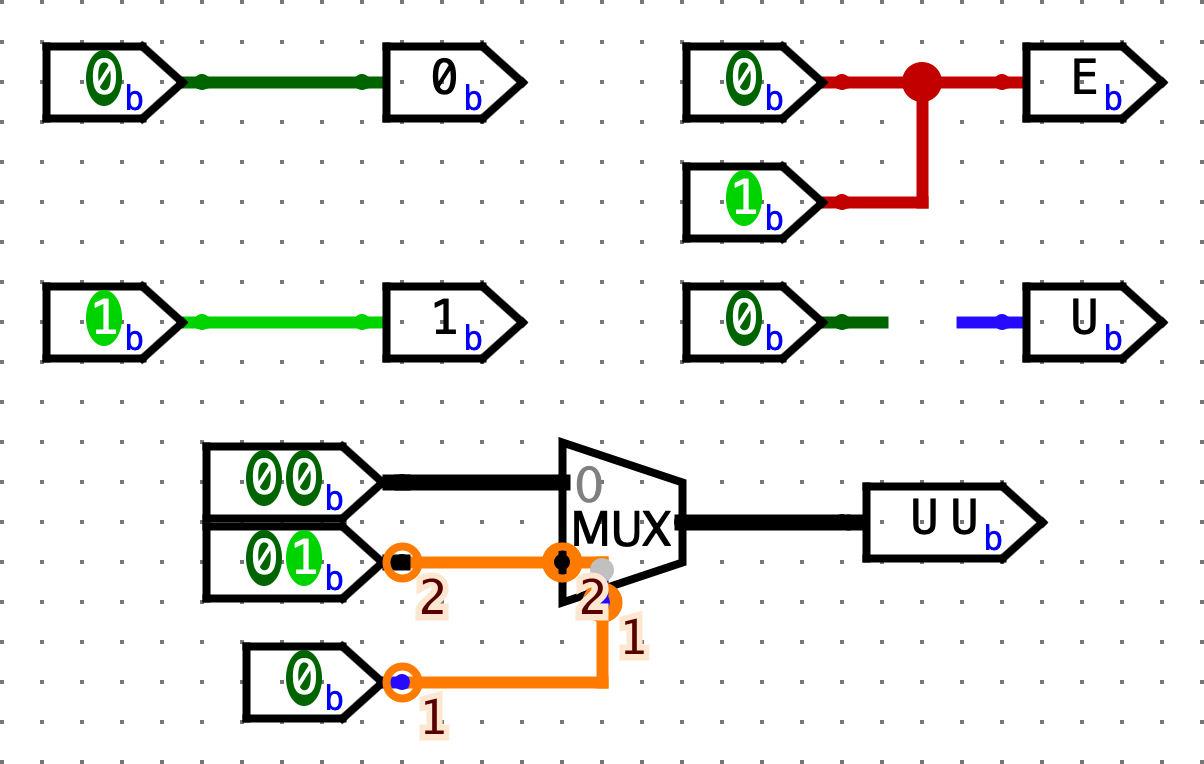

7. Now, take a look at these wire colors and values. It may help to try re-creating each color on your own.



   • Dark green: 1-bit wire has a value of 0
   • Bright green: 1-bit wire with a value of 1
   • Black: multi-bit wire (many components have bit width attributes which can be configured in the attributes menu on the bottom left)
   • Red (values with EEEE): the wire has multiple values on it (in this case, a 0 and 1 from the 2 inputs). Also, remember that a big circle appears at wire junctions.
   • Blue (values with UUUU): the wire is floating (i.e. has no known value)
   • Orange: the wire is connected to components that have different bit widths. If you’re re-creating this, an easier example is a 1-bit input pin connected to a 2-bit output pin. In the shown example, there’s a slightly hidden wire behind the MUX connecting the 2-bit lower data line to the 1-bit select line. Watch out for these!

Exercise 1: Sub-Circuits

Just as C programs can contain helper functions, a schematic can contain helper subcircuits. In this part of the lab, we will create several subcircuits to demonstrate their use.

Note: Logisim Evolution generally doesn’t permit names with spaces or symbols, names starting with numbers, or names that conflict with keywords (e.g. NAND)

Action Item

Follow the steps below. Remember to save often, and avoid moving or editing the provided input/output pins.

1. Open up the Exercise 1 schematic (File -> Open -> lab05/ex1.circ).

2. Open up the AND2 sample subcircuit by double-clicking AND2 in the circuit selector on the left side. Note the 2 at the end; because there is a component called AND, we can’t call it AND. We’ve created a demo circuit for your viewing pleasure; the circuit has 2 1-bit input pins, A and B, and sends the result of A & B to the RESULT output pin. This should look very similar to the practice circuit you just made.

3. Now, open up the NAND2 subcircuit. It’s time to make your own circuit! Fill in this circuit without using the built-in NAND gate from the Gates library on the left (i.e. only use the AND, OR, and NOT gates; they’re available as little icons in the toolbar at the top of the window, or in the Gates library in the circuit selector). When you’re done, similarly fill in the NOR2, XOR2, MUX2 (2-to-1 MUX), and MUX4 (4-to-1 MUX).

   • Please do not change the names of the subcircuits or create new ones, or your circuit may not work properly
   • Don’t use any built-in gates other than AND, OR, and NOT. However, once you’ve built a subcircuit, you may (and are encouraged to) use it to build others. You can do this by single-clicking a subcircuit in the circuit selector, and placing it like you did for the AND/NOT/OR gates
   • It helps to write out a truth table for each circuit. You might also find it useful to review the lecture slides on how to build these gates
   • For the 4-to-1 MUX, SEL0 and SEL1 correspond to the 0th and 1st bits of the 2-bit selector, respectively. Make sure not to switch them!

Testing

Open a terminal session and go to the lab05 folder. We’ve provided tests for each exercise, which you can run with python3 test.py. For each test, your circuit is run in a test harness circuit (tests/ex1-test.circ), and its output is compared against the reference output for that test (tests/reference-output/ex1-test.out). In the output file, each column corresponds to an input/output pin on the main circuit, and each row shows a set of inputs and the corresponding outputs the circuit produced. If your circuit output (tests/student-output/ex1-test.out) is different, you can check it against the reference output file; the diff command may help.

• Note that the output files are “formatted” by adding tab characters (\t) between each value, and they look best when tabs are displayed as 8 spaces wide. Values and column headers that are 8+ characters might mess up the alignment, so watch out for those!
• Don’t modify the reference output files, or local tests might produce incorrect results
• You shouldn’t need to edit the test harness circuits for this lab. However, it might be useful to take a look; we’ll be doing similar things in the next lab and project 3!

Checkpoint

At this point, make sure that you are comfortable with the Logisim environment, creating sub-circuits, and re-using such circuits in other circuits.

Exercise 2: Storing State

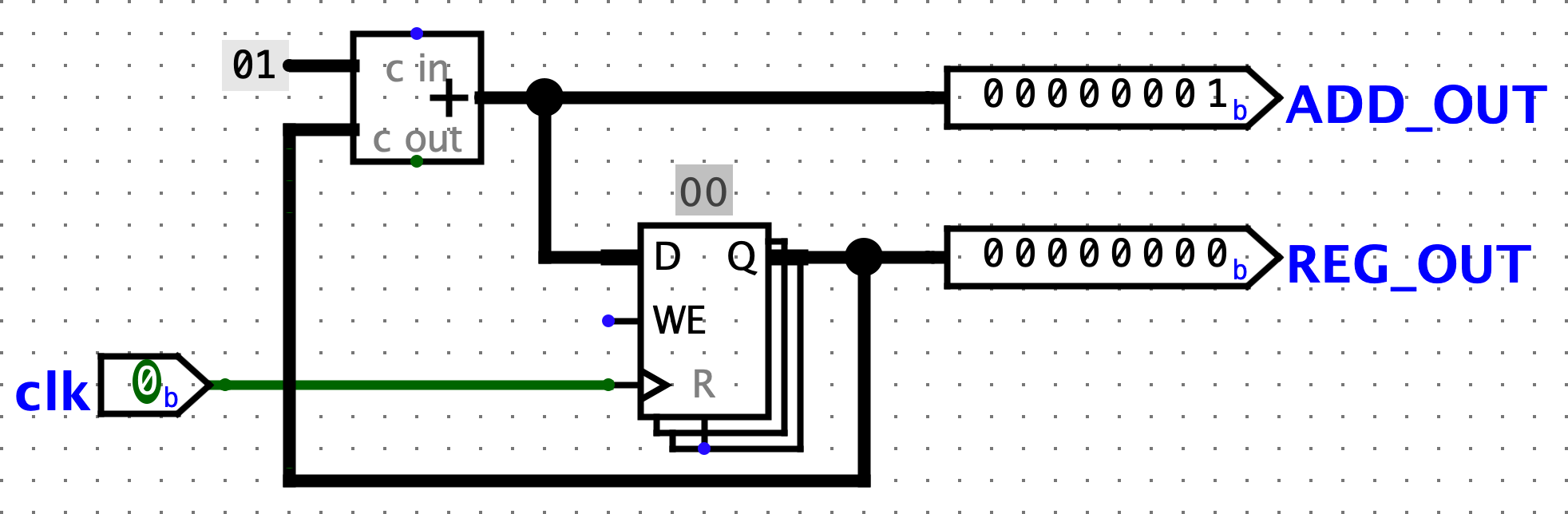

Let’s implement a circuit that increments a value ad infinitum. The difference between this circuit and the circuits you’ve built for lab so far is that it will store this value in the state of a register.

Action Item

Follow the steps below. Remember to save often, and avoid moving or editing the provided input/output pins.

1. Open up the Exercise 2 schematic (File -> Open -> lab05/ex2.circ) and go to the empty AddMachine circuit.

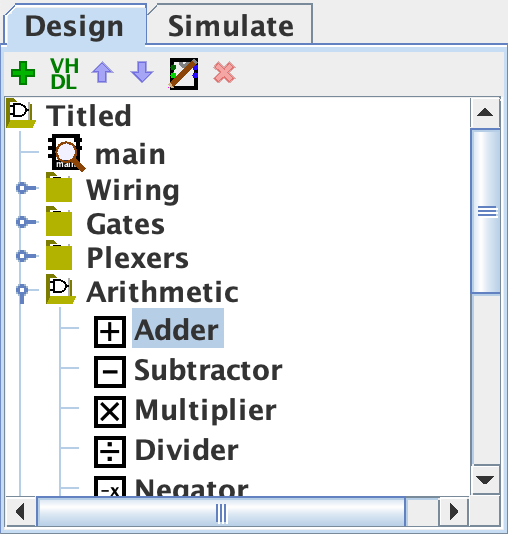

2. Select the Adder subcircuit from the Arithmetic library (circuit selector on the left side) and place the adder into your AddMachine subcircuit.



3. Select the Register from the Memory library and place one register into your subcircuit. Below is an image diagraming the parts of a register.



4. Wire up the clk input pin to the clock pin on your register. Note that while you could place a new Clock from the Wiring library, it’s generally better to have all components in a circuit use the same clock so that everything is in sync. In this case, the testing harness uses a clock for its register, so it passes that clock signal in through the clk pin here for your circuit’s registers. In the future, if you’re working on a circuit that doesn’t have an existing clock signal though, feel free to make your own.

5. Connect the output of the adder to the input of the register, and the output of the register to the input of the adder.

   • You may get a “Incompatible widths” error when you try to connect components. This means that your wire is trying to connect two pins together with different bit widths. If you click on the adder with the Selection tool (mouse pointer icon on the toolbar at the top), you will notice that there is a Data Bit Width property in the bottom left field of the window. This value determines the number of bits each input and output the adder has. Make sure that both the adder and register have a data bit width of 8, and the “Incompatible widths” error should be resolved.

6. Wire an 8-bit constant with a value of 1 to the second input of the adder. You can find the Constant circuit element in the Wiring library.

7. Connect the two output pins to your circuit so that you may monitor what comes out of the adder and the register. The output of the adder should be connected to ADD_OUT and the output of the register to REG_OUT. Thus, by the end, your circuit should look like as follows:



8. Now, open up the test circuit for this exercise (lab05/tests/ex2-test.circ). At the top left, we have a small circuit (like your AddMachine) keeping track of the current cycle. Below that, you should see your AddMachine circuit hooked up to the clock and some output pins. Tick your circuit once by going to Simulate -> Tick Half Cycle (Command/Control + T). The outputs from your AddMachine should have gone up! Additionally, the clock should now be bright green. If you Tick Half Cycle again, you’ll notice that the clock goes back to dark green, but the numbers don’t change. This is because the registers, by default, are rising-edge triggered (i.e. triggered when going from a low clock signal to a high signal). If you don’t care about the half cycle, you can also use Simulate -> Tick Full Cycle.

9. Ticking the circuit manually can be pretty tiring. Good news: Logisim can tick your circuit for you! Go to Simulate -> Ticks Enabled (Command/Control + K). Your circuit should now be counting up, hands-free! If you want to run your circuit faster, you can change the tick frequency in Simulate -> Tick Frequency. To stop, click Ticks Enabled (or use the keyboard shortcut) again. If you want to reset the circuit, Simulate -> Reset Simulation (Command/Control + R).

10. When you’re done, try running the provided tests (python3 test.py, see exercise 1).

Checkpoint

At this point, make sure that you are comfortable with designing and simulating simple digital logic circuits in Logisim environment that use a mix of combinational logic and state elements (registers).

Exercise 3: FSMs to Digital Logic

Now we’re ready to do something really cool: translate a FSM into a digital logic circuit.

If you’ve forgotten, FSM stands for Finite State Machine. FSM’s keep track of inputs given, moves between states based on these inputs, and outputs something everytime something is input.

We use a register to store the state of the FSM we’re currently in, and combinational logic to map FSM input & current register state to FSM output & next register state.

Action Item

You’ll be implementing the following FSM:

If two ones in a row or two zeroes in a row have ever been seen, output zeros forever. Otherwise, output a one.

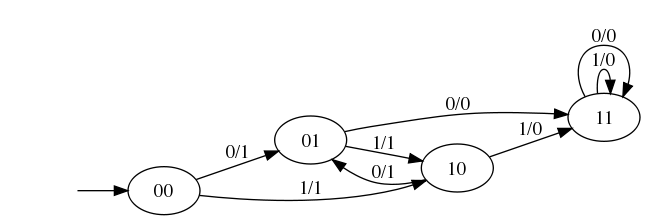

• Note that the FSM is implemented by the following diagram (the four state names 00, 01, 10, 11 are just names written in binary - they have no direct relationship with the actual zeros and ones of the FSM input/output). Take some time to understand how this diagram implements the FSM:



• Below is a truth table for the FSM (convince yourself of this). Note that since we’re working with a binary number, “bit 0” is the less significant bit (i.e. right digit) and “bit 1” is the more significant bit (i.e. left digit).

  st1	st0	input	next st1	next st0	output
  0	0	0	0	1	1
  0	0	1	1	0	1
  0	1	0	1	1	0
  0	1	1	1	0	1
  1	0	0	0	1	1
  1	0	1	1	1	0
  1	1	0	1	1	0
  1	1	1	1	1	0

Follow the steps below. Remember to save often, and avoid moving or editing the provided input/output pins.

1. Open up ex3.circ in Logisim. Note that the top level FSM circuit looks almost exactly the same as our previous adder circuit, but now there’s a FSMLogic block instead of an adder block. FSMLogic is the combinational logic block for this FSM. We have handled the output bit for you, as it’s the most complicated to simplify and implement.

2. Complete the StateBit0 and StateBit1 subcircuits, which produce the 0th and 1st bits of the next state using the input bit and current state.

3. When you’re done, try running the provided tests

Checkpoint

At this point, you should have more familiarity with designing and implementing FSMs, and the close relationship between FSMs and digital logic.

Info: Advanced Logisim Features

Here are three Logisim features that should both save you a lot of time and make your circuits look much cleaner.

Splitters

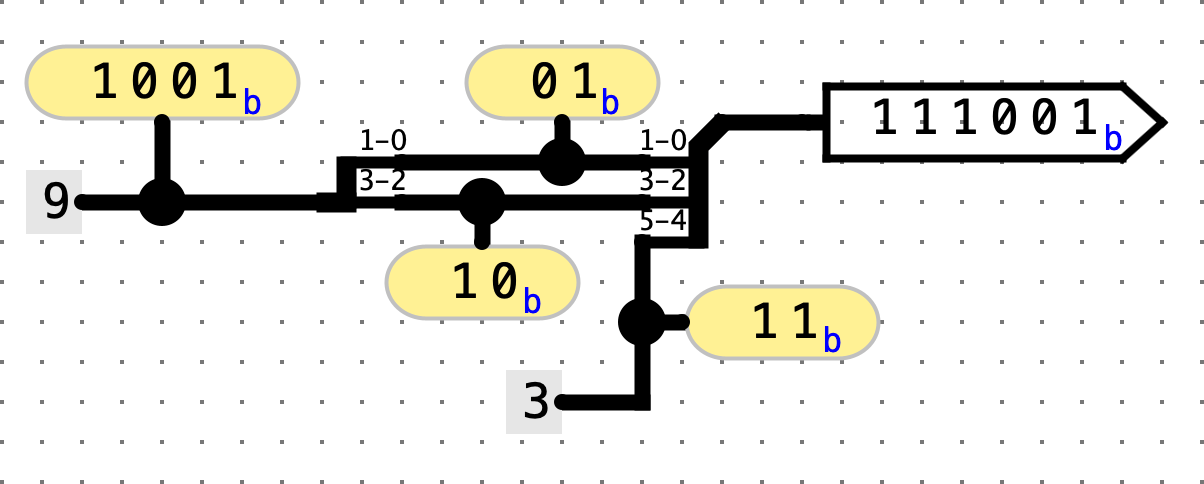

Splitters allow you to take a multi-bit value and split it up into smaller parts, or (despite the name) combine multiple values that are one or more bits into a single value. Here, we split the 4-bit binary number 1001 into 10 and 01, then recombine it with 11 into the final 6-bit number 111001:

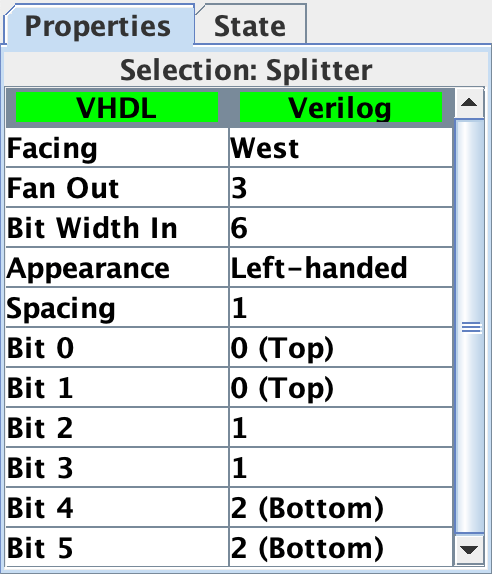

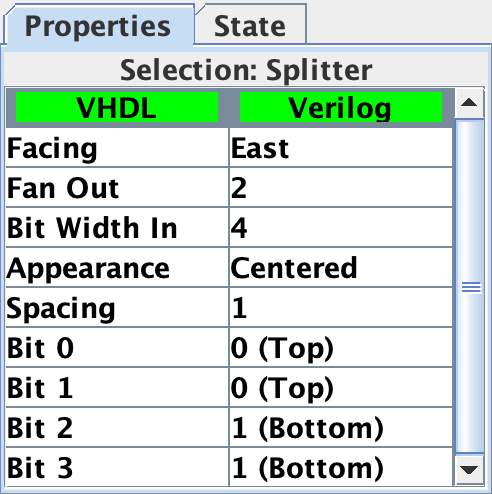

Click on a splitter to get its attributes in the sidebar (lower left). You can configure attributes like the number of arms on your splitter and the bits present on each arm. For the circuit above, the left and right splitters’ attributes looks like this:

Notice that there’s an attribute called Facing. You can use this to rotate your splitter. In the above example, the splitter on the right is facing West while the splitter on the left is facing East.

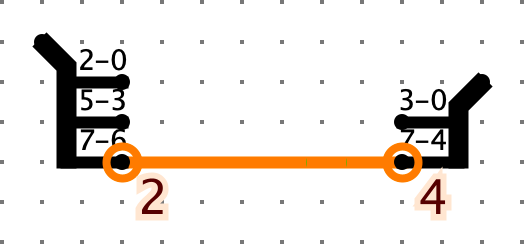

If you see an error wire that is orange, this means that your bit width in does not match your bit width out. Make sure that if you’re connecting two components with a wire, you correctly set the bit width in that component’s menu.

Tunnels

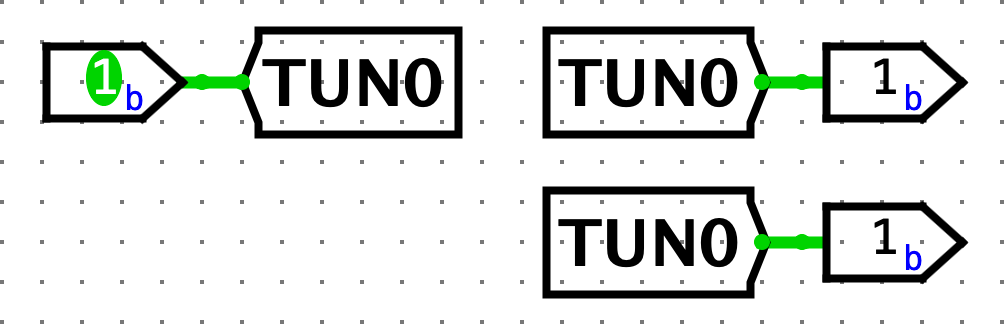

A tunnel allows you draw an “invisible wire” to bind two points together. Tunnels are grouped by case-sensitive labels give to a wire. They are used to connect wires like so:

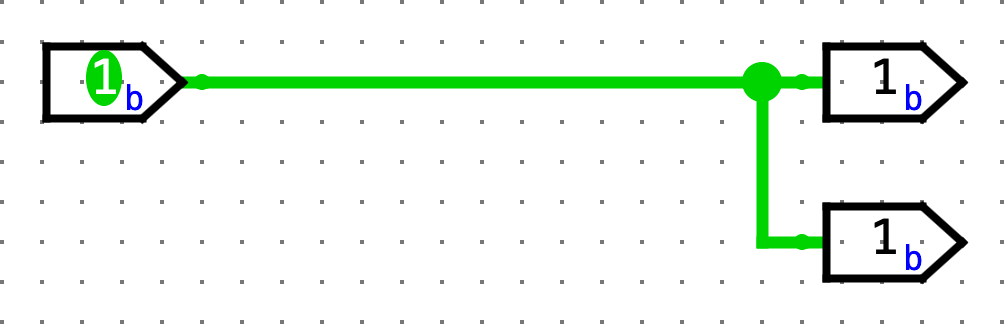

which effectively is:

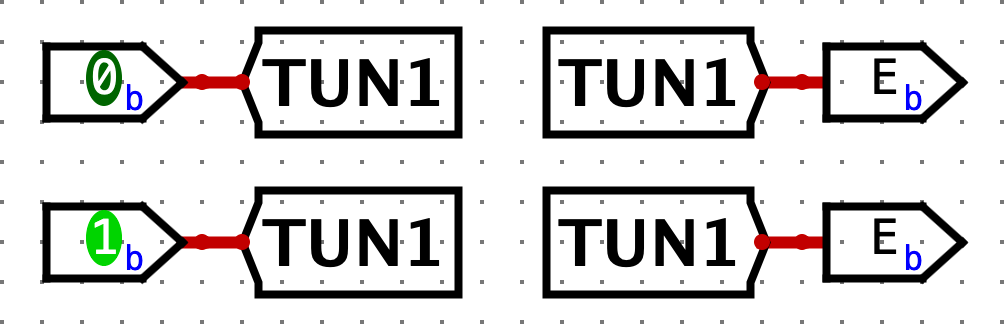

Some care should be taken as to which wires are connected with tunnels to which other wires, such as in this case:

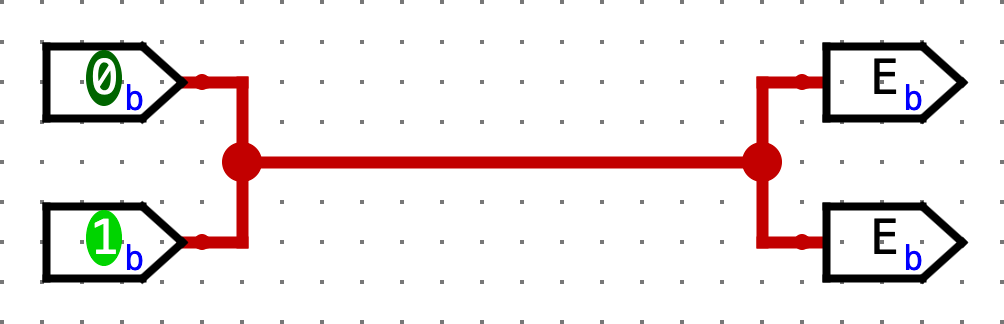

which effectively is:

We strongly recommend you use tunnels with Logisim, because they make your circuits look much cleaner (less wiring spaghetti), which means easier debugging.

Extenders

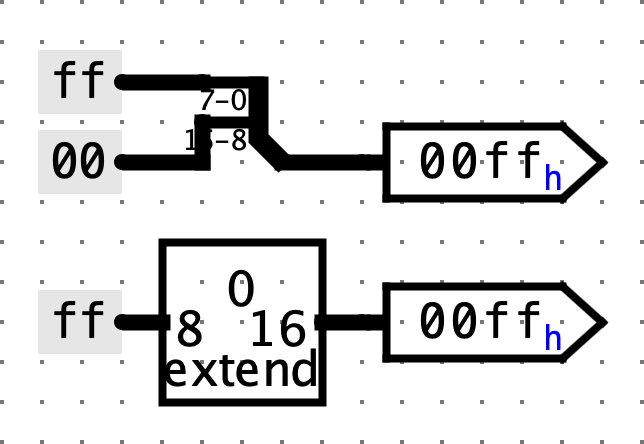

When changing the width of a wire, you should use a bit extender for clarity. For example, consider the following implementation of zero-extending an 8-bit wire into a 16-bit wire:

Compared to the splitter, the extender is easier to understand at a glance. This becomes especially helpful when working with complex circuits.

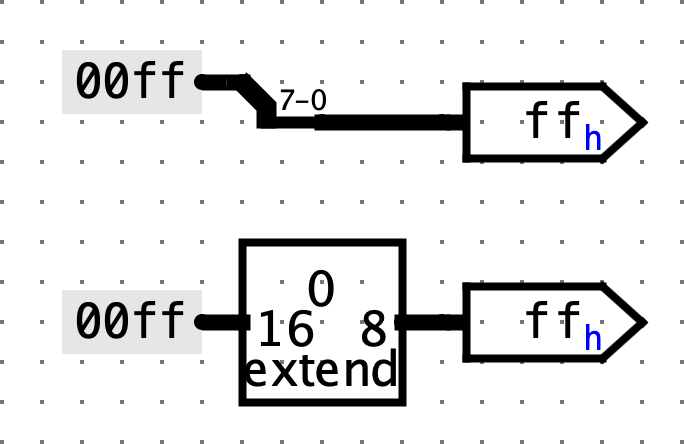

Additionally, consider the case of throwing out bits. Despite its name, an extender can also perform this operation:

While the splitter is more minimalist, it’s also slightly harder to read.

Exercise 4: Practice with Splitters

We’re going to construct a circuit that manipulates an 8-bit number.

Action Item

Follow the steps below. Remember to save often, and avoid moving or editing the provided input/output pins.

1. Open up ex4.circ and go to the empty SplitThing circuit.

2. Go to the Wiring library and select the Splitter circuit. This circuit will take a wire and split it into a set of wires of smaller width. Conversely, it can also take many sets of wires and combine them into one.

3. Change the Bit Width In property (bus width) to 8, and Fan Out property (# of branches) to 3. Now, select which bits to send out to which part of your fan. The least significant bit is bit 0 and the most significant bit is bit 7. Bit 0 should come out on fan arm 0, bits 1, 2, 3, 4, 5 and 6 should come out on fan arm 1, and bit 7 should come out on fan arm 2.

   • The None option means that the selected bit will not come out on ANY of the fan arms.
   • If you want to change many consecutive bits at once, click the name of the first one (not the arm #), hold Shift, and click the name of the last one. All the rows in-between should be highlighted. Now, change the arm # of one of the bits, and all the bits should be updated at once.

4. Route INPUT0 to the splitter. Attach a 2-input AND gate to fan arms 0 and 2 and route the output of the AND gate to OUTPUT0.

5. Now, interpreting the input as a “sign and magnitude” number, place logic gates and other circuits so that OUTPUT1 receives the negative “sign and magnitude” value of the input. Sign and magnitude is an alternate way of representing signed values - like 2’s complement, but simpler! The combinational logic should be somewhat straightforward.

6. We will need another splitter to recombine the fans into a single 8-bit bus. Place another splitter with the proper properties (Bit Width In: 8, Fan Out: 3, correct fan widths). Play with the Facing and Appearance properties to make your final circuit as clean-looking as possible. At this point, OUTPUT1 should be the negation of the input (when interpreting the INPUT0 and OUTPUT1 as “sign and magnitude” values).

7. When you’re done, try running the provided tests

Checkpoint

If we decide to take the input and interpret it as a 2’s Complement number, what inputs would produce OUTPUT0 = 1? Hint: What do the first and last bits of a 2’s complement number being 1 tell you about the number?

Exercise 5: Rotate Right

With your knowledge of splitters and your knowledge and experience with multiplexers, you are ready to implement a non-trivial combinational logic block: RotRight, which stands for “Rotate Right”. The idea is that RotRight will “rotate” the bit pattern of input INPUT0 to the right by AMOUNT bits. So, if INPUT0 were 0b1000000000000101 and AMOUNT were 0b0011 (3 in decimal), the output of the block would be 0b1011000000000000. Notice that the rightmost 3 bits were rotated off the right end of the value and back onto the left end. In RTL, the operation would be something like R = A >> B | A << (16 - B).

Action Item

Implement a subcircuit named RotRight with the following inputs:

• INPUT0 (16-bit), the 16-bit input to be rotated
• AMOUNT (4-bit), the rotation amount (why 4 bits?)

You can find the starter subcircuit in ex5.circ. Remember to save often, and avoid moving or editing the provided input/output pins.

The output should be INPUT0 rotated right by AMOUNT bit positions, as outlined above. You are NOT allowed to use Logisim shifters in your solution, though all other combinational logic (MUXes, constants, gates, adders, etc.) is allowed. Logisim’s built-in MUXes (find them under the Plexers menu) might be especialy helpful. Your solution shouldn’t involve a clock or any clocked elements, like registers.

• Before you start wiring, you should think very carefully about how you might decompose this problem into smaller ones and join them together. You should feel very free to use subcircuits when implementing RotRight (we’ve provided rot1, rot2, rot4, and rot8, why?). If you don’t, things might get complicated.
• Just because we gave you an RTL representation doesn’t mean it’s the best way to look at this problem. Think about the input bits of B and think about how to effectively use splitters! Can you do something with the binary form? Remember why binary is good for use in computers: a 1 is easy to represent as an ON signal, and a 0 is easy to represent as an OFF signal. Let’s say we want to rotate 9 times. 9 is 1001 in binary, or 1*8 + 0*4 + 0*2 + 1*1. Can you use this to make a cleaner circuit? Making use of the rot* circuits we have provided is a good idea that will keep things clean!

When you’re done, try running the provided tests.

Submission

Save, commit, and push your work, then submit to the Lab05 assignment on Gradescope.
